Non-standard Telescopic Forks

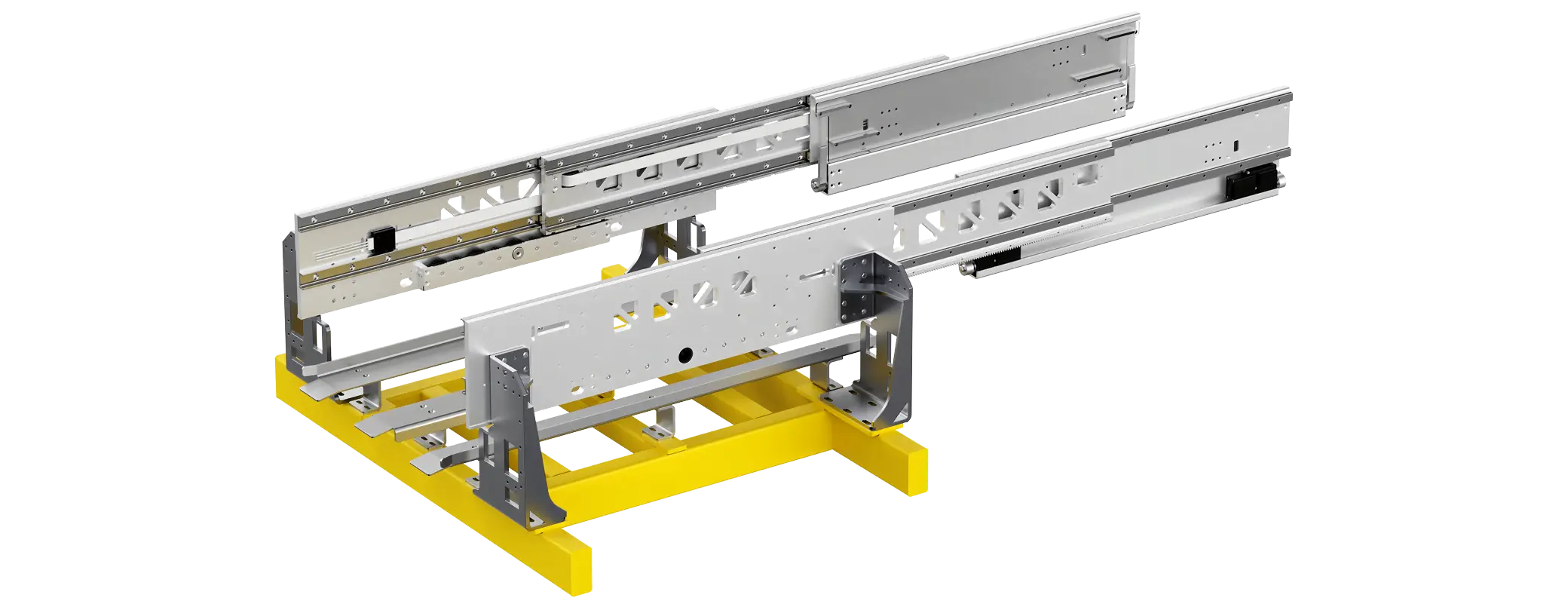

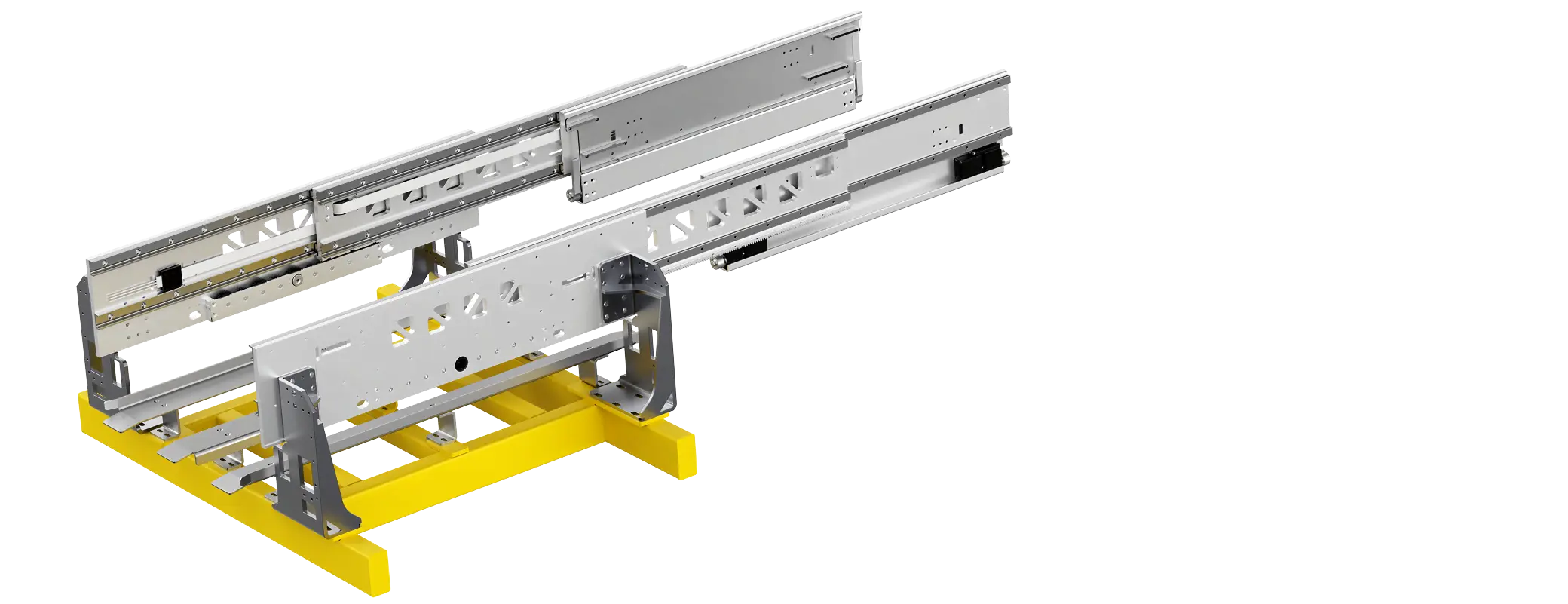

Clamping Fork
Clamping forks handle material box push-pull operations on light stackers with beam shelves, reducing shelf costs compared to standard forks.
Moving Section (mm)
56×185 / Customized
Fork Width (mm)
56 / Customized
Fork Thickness (mm)
185 / Customized
Upper Fork Length (mm)
500-1200 / Customized
Lower Fork Length (mm)
500-1200 / Customized
Stroke (mm)
580-1380 / Customized
Payload (kg)
100 / Customized
Speed (m/s)
Unladen 2 / Laden 1.5
Acceleration (m/s²)
Unladen 2 / Lande 1.5
Technical Characteristics
■ High-precision positioning with an accuracy up to ±2mm
■ DC stepper motor selected for more stable movement
■ Larger load capacity, lower noise and longer service life
The clamping fork is used for push-pull storage of material boxes. It is usually assembled on a light-duty stacker. Combined with the beam shelf, it performs push-pull handling operations on the target material box. Compared with ordinary forks, the clamping fork can save shelf costs.
Moving Section
56 × 185 (mm)
Fork Width
56 (mm)
Fork Thickness
185 (mm)
Upper Fork Length
500 - 1200 (mm)
Lower Fork Length
500 - 1200 (mm)
Stroke (mm)
580 - 1380 (mm)
Payload
100 (kg)
Laden Speed
1.5 (m/s)
Landen Acceleration
1.5 (m/s²)
All parameters fully customizable per client specifications
Technical Characteristics
■ High-precision positioning with an accuracy up to ±2mm
■ DC stepper motor selected for more stable movement
■ Larger load capacity, lower noise and longer service life
