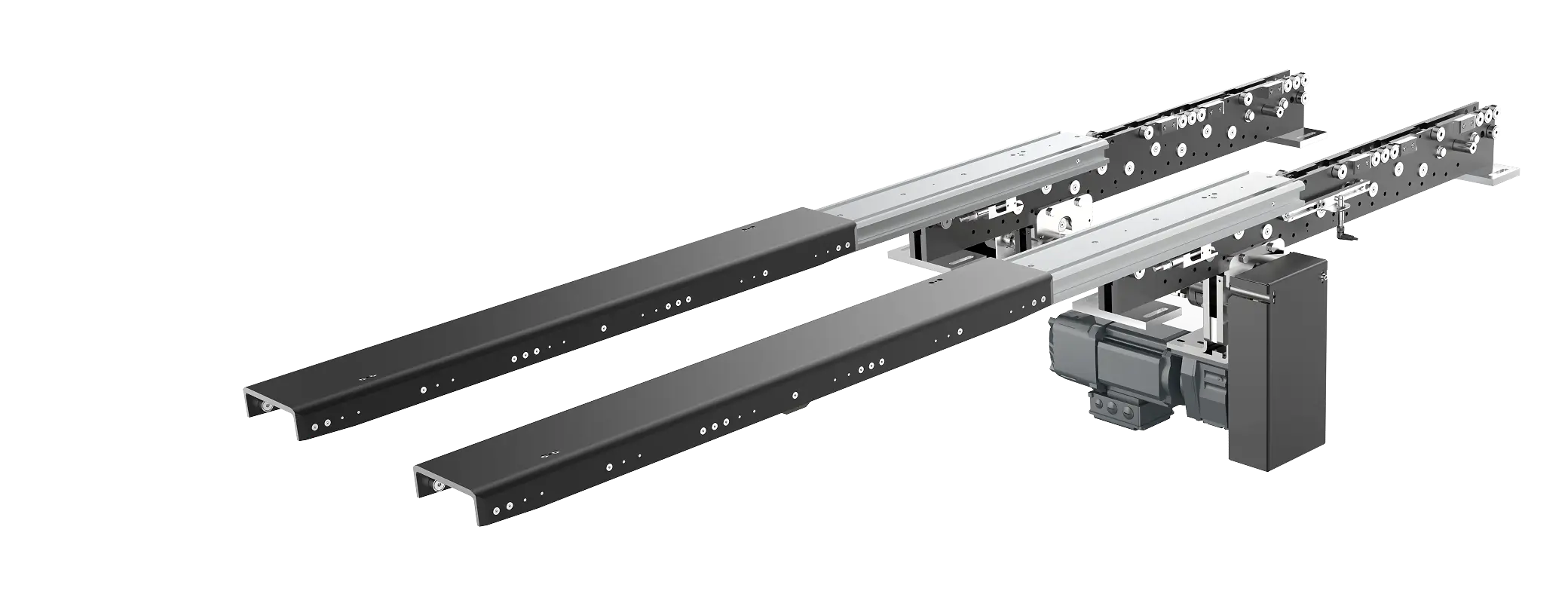

Single Motor Single Depth Forks
Multi-Arm Telescopic Forks
This series is the most commonly used model and suitable for 1200 / 1300 standard pallets. Fork length, stroke, and fork interspace can be customized, covering more than 90% of requirements.
Moving Section (mm)
170×65 / Customized
Stroke (mm)
0-2680 / Customized
Laden Speed (m/min)
0-45
Fork Finger (pcs)
2 / Multi
Fork Interspace (mm)
500-2500 / Customized
Laden Acceleration (m/s²)
0-0.6
Reference Specifications
Technical specs serve as baseline references, fully customizable to operational requirements.
Download product brochure for full technical details.
| Reference Model | Fork Width(mm) | Fork Thickness(mm) | Upper Fork Length(mm) | Lower Fork Length(mm) | Stroke(mm) | Payload(mm) | Laden Deflection(mm) |
|---|---|---|---|---|---|---|---|
| SS-140×40-600-780-2Z | 140 | 40 | 600 | 600 | 780 | 100 | 6 ±10% |
| SS-140×40-800-980-2Z | 140 | 40 | 800 | 800 | 980 | 100 | 8 ±10% |
| SS-170×65-1000-1330-2Z | 170 | 65 | 1000 | 1000 | 1330 | 1300 | 22 ±10% |
| SS-170×65-1100-1380-2Z | 170 | 65 | 1100 | 1100 | 1380 | 1250 | 21 ±10% |
| SS-170×70-1200-1380-2Z | 170 | 70 | 1200 | 1200 | 1380 | 1500 | 18 ±10% |
| SS-170×70-1500-1580-2Z | 170 | 70 | 1500 | 1500 | 1580 | 1200 | 19 ±10% |
| SS-180×80-1600-1780-2Z | 180 | 80 | 1600 | 1600 | 1780 | 1200 | 19 ±10% |
| SS-180×80-1700-1880-2Z | 180 | 80 | 1700 | 1700 | 1880 | 1000 | 19 ±10% |
| SS-180×100-2000-2180-2Z | 180 | 100 | 2000 | 2000 | 2180 | 1200 | 16 ±10% |
| SS-180×100-2100-2280-2Z | 180 | 100 | 2100 | 2100 | 2280 | 1000 | 15 ±10% |
| SS-200×100-2000-2180-2Z | 200 | 100 | 2000 | 2000 | 2180 | 1800 | 20 ±10% |
| SS-200×100-2100-2280-2Z | 200 | 100 | 2100 | 2100 | 2280 | 1600 | 20 ±10% |

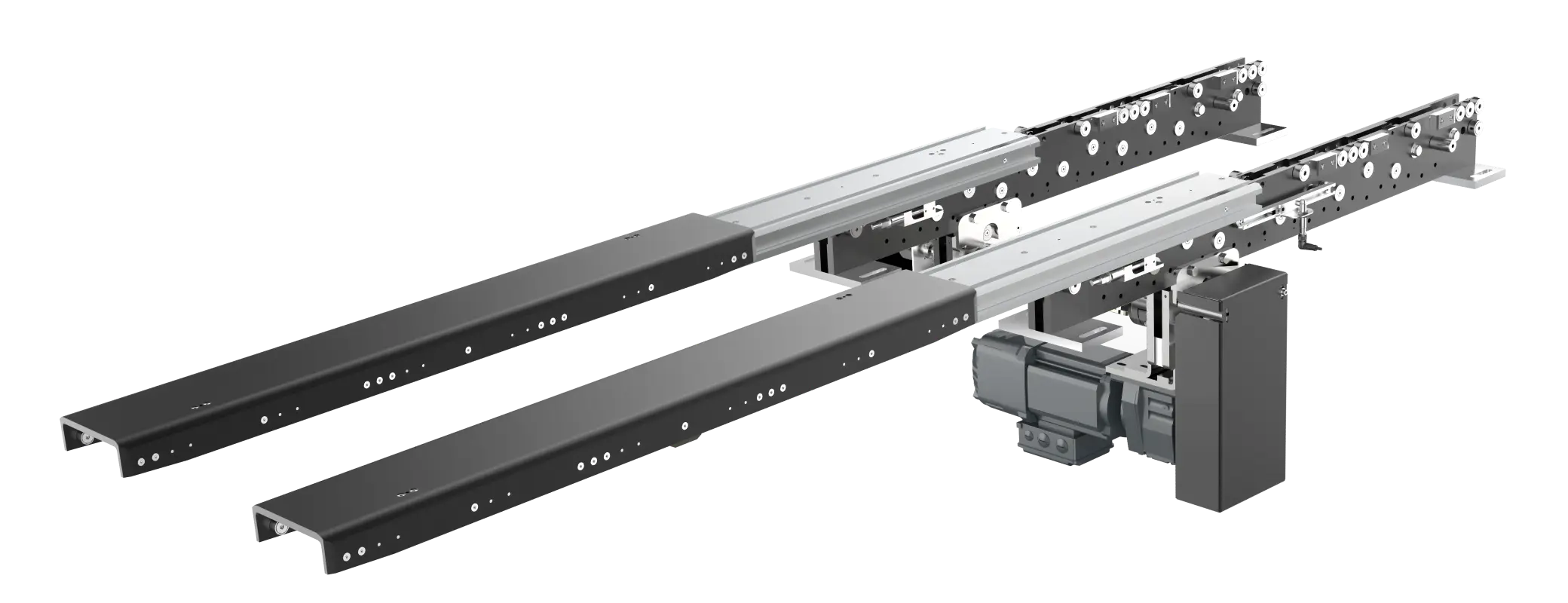

Single Motor Single Depth Forks
This series is the most commonly used model and suitable for 1200 / 1300 standard pallets.
Fork length, stroke, and fork interspace can be customized, covering more than 90% of requirements.
Moving Section
170 × 65 (mm)
Stroke
0 - 2680 (mm)
Laden Speed
0 - 45 (m/min)
Fork Finger
2 / Multi (pcs)
Fork Interspace
500 - 2500 (mm)
Laden Acceleration
0 - 0.6 (m/s²)
All parameters fully customizable per client specifications
Reference Specifications
Technical specs serve as baseline references, fully customizable to operational requirements.
Download product brochure for full technical details.
| Reference Model | Stroke (mm) |
|---|---|
| SS-140×40-600-780-2Z | 780 |
| Fork Width (mm) | Fork Thickness (mm) |
| 140 | 40 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 600 | 600 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 100 | 6 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-170×65-1000-1330-2Z | 1330 |
| Fork Width (mm) | Fork Thickness (mm) |
| 170 | 65 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 1000 | 1000 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 1300 | 22 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-170×70-1200-1380-2Z | 1380 |
| Fork Width (mm) | Fork Thickness (mm) |
| 170 | 70 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 1200 | 1200 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 1500 | 18 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-180×80-1600-1780-2Z | 1780 |
| Fork Width (mm) | Fork Thickness (mm) |
| 180 | 80 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 1600 | 1600 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 1200 | 19 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-180×100-2000-2180-2Z | 2180 |
| Fork Width (mm) | Fork Thickness (mm) |
| 180 | 100 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 2000 | 2000 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 1200 | 16 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-200×100-2000-2180-2Z | 2180 |
| Fork Width (mm) | Fork Thickness (mm) |
| 200 | 100 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 2000 | 2000 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 1800 | 20 |
