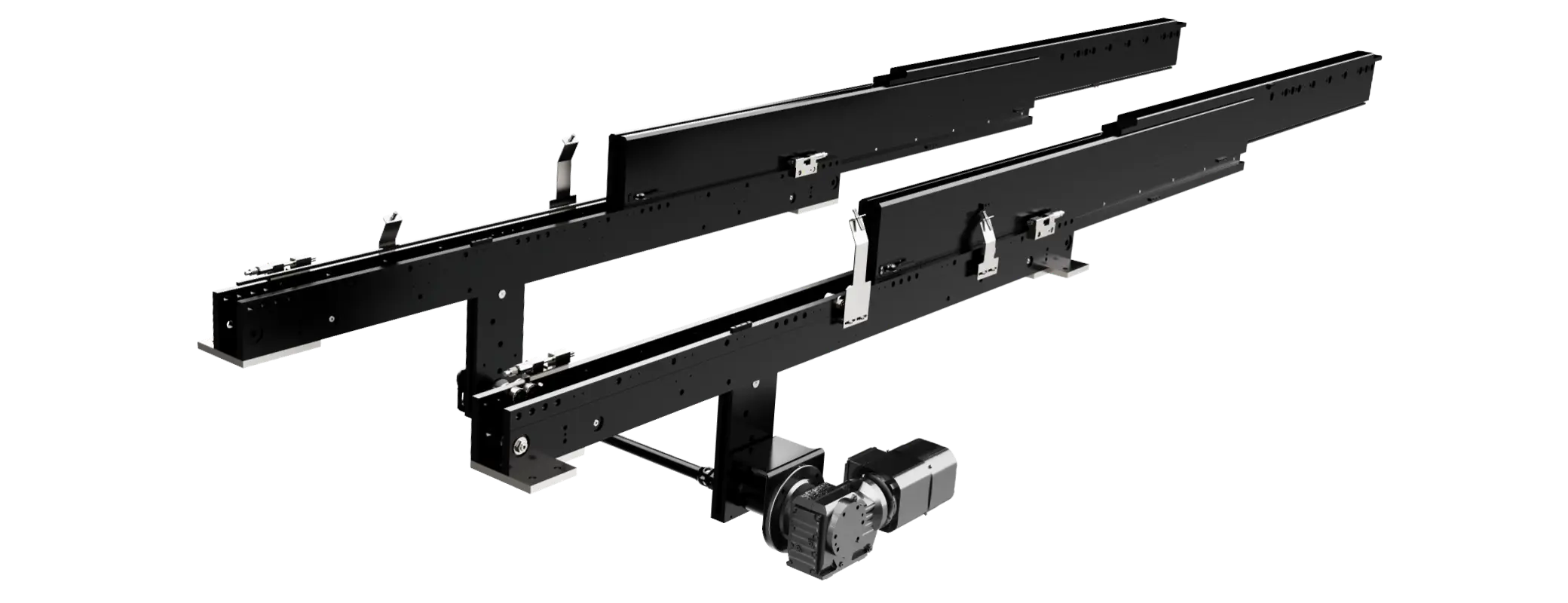

Single Motor Single Depth Forks
Narrow Aisles Forks
This series is a solution for narrow passages and is mostly used in special scenarios such as papermaking, steelmaking, and battery swap stations.
Fork length, stroke, and fork interspace can be customized.
Moving Section (mm)
80 × 350 / Customized
Stroke (mm)
0 - 3580 / Customized
Laden Speed (m/min)
0 - 45
Fork Finger (pcs)
2 / Multi
Fork Interspace (mm)
400 - 2500 / Customized
Laden Acceleration (m/s²)
0 - 0.6
Reference Specifications
Technical specs serve as baseline references, fully customizable to operational requirements.
Download product brochure for full technical details.
| Reference Model | Fork Width(mm) | Fork Thickness(mm) | Upper Fork Length(mm) | Lower Fork Length(mm) | Stroke(mm) | Payload(mm) | Laden Deflection(mm) |
|---|---|---|---|---|---|---|---|
| SS-80×350-2000-2680-2Z | 80 | 250 | 2000 | 2000 | 2680 | 3000 | 11 ±10% |
| SS-80×350-2200-2980-2Z | 80 | 250 | 2200 | 2200 | 2980 | 3000 | 14 ±10% |
| SS-80×350-2600-3180-2Z | 80 | 250 | 2600 | 2600 | 3180 | 3000 | 20 ±10% |
| SS-80×350-3000-3380-2Z | 80 | 250 | 3000 | 3000 | 3380 | 3000 | 26 ±10% |
Single Motor Single Depth Forks
This series is a solution for narrow passages and is mostly used in special scenarios such as papermaking, steelmaking, and battery swap stations.
Fork length, stroke, and fork interspace can be customized.
Moving Section
80 × 350 (mm)
Stroke
0 - 3580 (mm)
Laden Speed
0 - 45 (m/min)
Fork Finger
2 / Multi (pcs)
Fork Interspace
400 - 2500 (mm)
Laden Acceleration
0 - 0.6 (m/s²)
All parameters fully customizable per client specifications
Reference Specifications
Technical specs serve as baseline references, fully customizable to operational requirements.
Download product brochure for full technical details.
| Reference Model | Stroke (mm) |
|---|---|
| SS-80×350-2000-2680-2Z | 2680 |
| Fork Width (mm) | Fork Thickness (mm) |
| 80 | 350 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 2000 | 2000 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 3000 | 11 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-80×350-2200-2980-2Z | 880 |
| Fork Width (mm) | Fork Thickness (mm) |
| 80 | 350 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 2200 | 2200 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 3000 | 14 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-80×350-2600-3180-2Z | 3180 |
| Fork Width (mm) | Fork Thickness (mm) |
| 80 | 350 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 2600 | 2600 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 3000 | 20 |
| Reference Model | Stroke (mm) |
|---|---|
| SS-80×350-3000-3380-2Z | 3380 |
| Fork Width (mm) | Fork Thickness (mm) |
| 80 | 350 |
| Upper Fork Length (mm) | Lower Fork Length (mm) |
| 3000 | 3000 |
| Payload (kg) | Laden Deflection (mm, ±10%) |
| 3000 | 26 |
